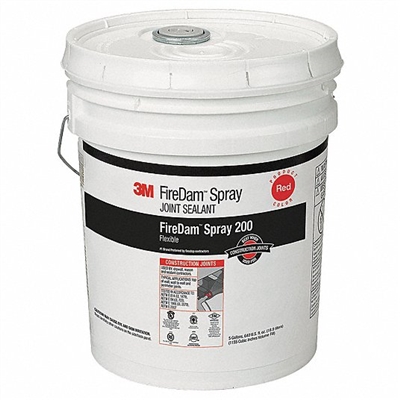

3M Fire Barrier Sealant: Red, Pail, 5 gal Size, Up to 4 hr, Gen Purpose, Airless Sprayer

Our 3M™ FireDam™ Spray 200 is a sprayable material that dries to form a tough, elastomeric coating. It will firestop building joints, curtain wall perimeter joints and through penetration seals to control the transmission of fire, heat, smoke and noxious gas. This water-based firestop sealer is applied with conventional airless sprayers, dries quickly and cleans up easily.

Effective Fire Protection in a Flexible, Durable Coating
Formulated for flexibility that stays where it's sprayed, our 3M™ FireDam™ Spray 200 controls the transmission of fire, heat, smoke and noxious gasses before, during and after exposure to fire. It provides up to 4-hour fire protection in construction joints per ASTM E 1966 (UL 2079) and up to 2-hour protection for through penetration systems per ASTM E 814 (UL 1479) & CAN/ULC-S115. It also provides up to 3-hour fire protection in perimeter fire barrier systems (curtain walls) in accordance with ASTM E 2307. This firestop coating is Ideal for sealing building joints, penetration seals and perimeter joints between fire-rated floors and fire-rated walls. It also minimizes noise transfer (STC Rating of 56 when tested in a STC 56-rated wall assembly).

This elastomeric coating forms a durable, flexible seal with up to +/- 50% compression/extension of nominal joint width without cracking. It resists sag for vertical applications, and displays excellent hiding power which makes it easier for technicians to maintain the proper coating thickness.

Easy Spray-On Fire Protection
Our water-based, easy-cleanup 3M™ FireDam™ Spray 200 is applied using conventional airless sprayers. Applied as a 1/8" (3mm) coating, it dries quickly to a uniform seal in a variety of conditions. It is also freeze and thaw resistant, helping to ensure consistent firestop in a range of conditions during construction. 3M™ FireDam™ Spray 200 is available in a distinct red for easy identification, or a dark gray to match existing surroundings.

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ FireDam™ Spray 200 is part of our family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.

FIRE CAULK

Technical Service 1-800-992-1180 STI Product Data Sheet • Series SNS Acoustical Sealant • FOD-5104 2006 1
www.stifirestop.com
• Economical High performance without the high price!
• Safe Safe for contact with plastics.
• Water Resistant Will not re-emulsify when dry.
• Water-Based Easy installation, cleanup, and disposal.
• Remains Flexible Allows movement.
• Acoustically Tested Reduces noise transmission.
• Low VOCs Safe, No solvents, Non-Halogenated
• Paintable
SMOKE ‘N’ SOUND ACOUSTICAL SEALANT
APPLICATIONS PRODUCT DESCRIPTION
SpecSeal® Smoke ‘N’ Sound Sealant has superb color stability and resistance to ultraviolet rays, ozone, and airborne contaminants. It is also mildew resistant
and meets Class A finish requirements for Flame Spread and Smoke Development when tested in accordance with ASTM E84. SpecSeal® Smoke ‘N’
Sound Sealant provides less than one cfm air leakage when tested in accordance with UL1479 and UL2079 and is also acoustically tested and classified,
demonstrating excellent sound attenuation properties.
PERFORMANCE
PHYSICAL PROPERTIES
Product Name: Smoke 'N' Sound Sealant
Leakage: ≤1 CFM per UL1479
Color : White or Safety Yellow
Odor: Mild Latex
Specific Gravity: 1.56
Solids Content by Weight: 83%
Solids Content by Volume: 71%
pH: 7.0 – 7.5
VOC: 20 g/L (.17 lb./gal)
(ASTM D3960 OR EPA Method 24)
FEATURE BENEFIT
PRODUCT DATA SHEET
SpecSeal® Smoke ‘N’ Sound Sealant is a high quality acrylic latex sealant designed for
sealing through-penetrations (such as pipes, conduits, cabling, busways, openings), membrane
penetrations (such as p-traps and outlet boxes) in smoke rated walls. SpecSeal Smoke ‘N’
Sound may also be used in linear applications such as wall-to-wall and head-of-wall joints
where joints are designed to be either static or minimally dynamic.
SpecSeal® Smoke ‘N’ Sound Sealant is available in a single grade that has excellent caulking
properties as well as high build properties on vertical or overhead surfaces. This single grade
may be caulked (standard cartridge or bulk loaded), knifed or troweled. In addition, SpecSeal
Smoke ‘N’ Sound contains no PCB’s nor asbestos.
SpecSeal® Smoke ‘N’ Sound Sealant is storage stable (when stored according to the
manufacturer’s recommendations), is asbestos free and will not separate nor excessively
shrink when dried. Smoke ‘N’ Sound will adhere to all common construction and penetrant
materials and contains no solvents that might adversely affect plastic pipes or cable jackets.
SMOKE CONTROL: Where stopping the
passage of smoke is necessary such as in smoke
barrier walls.
NOISE CONTROL: Where reducing the
transmission of sound through wall openings is
necessary to help ensure occupant privacy and
peaceful environment.
INFECTIOUS/DUST CONTROL: Where reducing
the transmission of dust and other airborne
particulates through wall openings is necessary.
ASTM C834: Complies
ASTM D217: 260 77°F
In-Service Temp.: Less than 185°F (85°C)
Storage Temp.: 40°F (4°C) - 95°F (35°C)
Flame Spread: 5
Smoke Development: 0
STC Rating: 62 (Relates to specific construction) (ASTM E 90-04/ASTM C919)
Shelf Life: 2 Years
PROPERTIES (cont.) SMOKE 'N' SOUND SEALANT
SPECIFICATIONS
The smoke sealing caulk shall be a water based, high quality latex sealant and shall dry to a water resistant and flexible smoke barrier when dry.
The sealant shall be tested for smoke sealing, noise abatement (acoustical) properties and shall meet Class A finish requirements when tested in
accordance with ASTM E84 (UL723).
SPECIFIED DIVISIONS
DIV. 7 — 07 90 00 — Joint Protection
DIV. 9 — 09 20 00 — Plaster and Gypsum Board
DIV. 22 — 09 20 00 — Plumbing
DIV. 26 — 26 00 00 — Electrical
PROPERTIES SMOKE 'N' SOUND SEALANT
2 STI Product Data Sheet • Series SNS Acoustical Sealant • FOD-5104 2006 Technical Service 1-800-992-1180
www.stifirestop.com
INSTALLATION INSTRUCTIONS
GENERAL: Areas to be protected must be clean and free of oil, loose dirt, rust or scale. Installation temperatures must be between 35° F (2°C) and
100˚F (38°C). Allow product to dry a minimum of 24 hours before exposure to moisture. SpecSeal® Smoke ‘N’ Sound may be installed by caulking
using a standard caulking gun or from bulk containers using a bulk loading caulk gun, or by manually troweling using a mason’s trowel or putty knife.
If the sealant tends to pull back from a surface, clean the surface with a damp rag or sponge and reapply. Work sealant into all areas exercising care to
eliminate voids or seams. Adding water to the sealant is not recommended.
1/2" Depth BOTH Sides of Wall Full Depth ONE Side of Wall
Concrete
Floor
SpecSeal®
Smoke 'N Sound
Sealant
Fiberglass Batt Insulation or
Mineral Wool Batt Insulation
Gypsum Wall
1/4" Depth BOTH Sides of Wall
1/4" Bead Gypsum Tight to Floor or at Track
SpecSeal®
Smoke 'N Sound
Sealant
Through
Penetration
Gypsum Wall
SpecSeal®
Smoke 'N Sound
Sealant
Concrete Floor
Concrete Floor
Gypsum Wall
Gypsum Wall
SpecSeal®
Smoke 'N Sound
Sealant
Concrete Floor
Concrete Floor
Gypsum Wall
Gypsum Wall
SpecSeal® Smoke 'N'
Sound Sealant
Mineral Wool
Batt Insulation
or Fiberglass
Batt Insulation
Concrete Floor
SpecSeal®
Smoke 'N Sound
Sealant
Gypsum Wall
Technical Service 1-800-992-1180 STI Product Data Sheet • Series SNS Acoustical Sealant • FOD-5104 2006 3
www.stifirestop.com
SEALING JOINTS & LINEAR GAPS: The width of the joint should be approximately 12 times the anticipated movement and should fall within the
range of 1/4” (6 mm) to 3/4” (19 mm). The depth of the joint should be 1/4” (6 mm) minimum to 3/8” (9 mm) maximum.
JOINT BACKING: Joints greater than 3/8” (9 mm) deep should be filled to within 3/8” (9 mm) of the surface with either polyethylene or polyurethane
backer rod, preferably of a non-gassing, non-absorbing type. Use a diameter that will compress about 25% when installed. In joints too shallow
to take backer rod, use a bond breaker tape to prevent three-sided adhesion.
INSTALLATION INSTRUCTIONS - (CONTINUED)
4 STI Product Data Sheet • Series SNS Acoustical Sealant • FOD-5104 2006 Technical Service 1-800-992-1180
www.stifirestop.com
Part # Description Packaging Size Color
SNS105 Smoke & Acoustical Sealant Pail 5 gal.(1,155 cu. in, 19 L) White
SNS105W Smoke & Acoustical Sealant Pail 5 gal. (1,155 cu. in, 19 L) White
SNS120W Smoke & Acoustical Sealant Sausage 20 oz. (36 cu. in. 592 ml) White
SNS129W Smoke & Acoustical Sealant Tube 29 oz. (52 cu. in. 858 ml) White
SNS134W Smoke & Acoustical Sealant Sausage 34 oz. (61 cu. in. 1005 ml) White
IMPORTANT NOTICE: All statements, technical information, and recommendations contained herein are based upon testing believed to be reliable, but the accuracy and completeness thereof is not guaranteed.
LIMITED WARRANTY: STI warrants that its products will be free of defects for one year from the date of purchase. In the event a product does not conform to this warranty, the sole and exclusive remedy is, at STI’s option, replacement of the product
or refund of the purchase price. The warranty provided herein shall be void and of no effect in the event that the product is not installed in accordance with STI’s published instructions, listed systems and applicable building and safety codes. THIS
WARRANTY IS IN LIEU OF ALL OTHER REPRESENTATIONS AND EXPRESSED OR IMPLIED WARRANTIES (including the implied warranties of merchantability or fitness for a particular use) AND UNDER NO CIRCUMSTANCES SHALL STI
BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING, WITHOUT LIMITATION, ANY LOSS OF REVENUE, PROFIT OR USE. Prior to use, the user shall determine
the suitability of the product for its intended use, and the user assumes all risks and liability for subsequent use. No person other than an officer of STI is authorized to bind STI to any other warranty for any product for which this warranty is issued.
MADE IN THE USA – COPYRIGHT © 2016 SPECIFIED TECHNOLOGIES INC.
MAINTENANCE
TECHNICAL SERVICE
PRECAUTIONARY INFORMATION
AVAILABILITY
No maintenance is normally required, however a periodic inspection of rated barriers is recommended to make sure that any new openings,
modifications of previously installed seals, or areas exhibiting physical damage, have been properly sealed or repaired. Subsequent sealing or
repairs should be accomplished using SpecSeal® Smoke 'N' Sound Sealant.
RETROFIT: When adding or removing penetrants, care should be taken to minimize damage to the seal. Reseal using SpecSeal® Smoke ‘N’
Sound.
Specified Technologies Inc. provides toll free technical support to assist in product selection and installation information. UL Classified Systems are
available at the Technical Library at www.stifirestop.com.
SpecSeal® Smoke ‘N’ Sound Sealant is non-flammable, non-toxic, non-irritating and environmentally safe. However, do not take internally. Refer
to Material Safety Data Sheet for additional information. Wash areas of skin contact with soap and water. Avoid contact with eyes. SEALANT IS
CONDUCTIVE UNTIL DRY.
LIMITATIONS: SpecSeal® Smoke ‘N’ Sound Sealant is water-based and cures through the evaporation of water. Low temperatures as well as
high humidity may retard drying. Non-porous or impermeable backing materials, plates, or coatings may retard the drying process. This product
has been designed to be safe with plastics and has been used extensively and successfully with a variety of different types of plastic pipes, tubes,
and plastic cable insulations. Variations in these materials however, make it impossible to guarantee compatibility. STI strongly recommends that
the user consult with the manufacturer of the pipe, tubing, or cable in question regarding any known sensitivities or potential restrictions before
applying this product. This product is recommended for use in sealing non-rated smoke barriers only and is not intended for use in fire-rated
barriers. Consult the local Authority Having Jurisdiction for local code requirements regarding smoke rated barriers prior to installing this product.
Consult Specified Technologies Inc. for recommendations concerning sealing applications in fire rated walls or floors.
SpecSeal® Smoke ‘N’ Sound Sealant is available from authorized distributors. Consult factory for the names and locations of the nearest sales
representatives or distributors.
Pipe Size Diameter of Opening (in.)
1.5 2.0 3.0 4.0 5.0 6.0 7.0 8.0 10 12 14 26
Trade Pipe
Size O.D.
0.5" 0.840 0.3 0.6 1.6 3.0 4.8 6.9 9.5 12.4 19.5 28.1 38.3 132.6
1" 1.315 0.1 0.4 1.4 2.8 4.6 6.7 9.3 12.2 19.3 27.9 38.1 132.4
1.5" 1.900 1.1 2.4 4.2 6.4 8.9 11.9 18.9 27.6 37.8 132.0
2" 2.375 0.7 2.0 3.8 6.0 8.5 11.5 18.5 27.2 37.4 131.6
2.5" 2.875 0.1 1.5 3.3 5.4 8.0 10.9 18.0 26.7 36.9 131.1
3" 3.500 0.7 2.5 4.7 7.2 10.2 17.2 25.9 36.1 130.3
3 .5" 4.000 1.8 3.9 6.5 9.4 16.5 25.1 35.3 129.6
4 " 4.500 0.8 3.0 5.6 8.5 15.6 24.2 34.4 128.7
6" 6.625 1.1 4.0 11.1 19.7 29.9 124.2
8" 8.625 4.9 13.6 23.8 118.0
1 0" 10.750 5.6 15.8 110.0
1 2" 12.750 6.6 100.8
24" 24.000 19.6
IMPORTANT NOTE: This table is for estimation purposes only. Consult UL Fire Resistance Directory or STI Product & Application Guide for specific installation requirements and limitations
Metric Estimation Table available upon request.
SEALANT REQUIREMENTS IN CUBIC INCHES PER 1/4 INCH OF INSTALLED DEPTH*
*Different Sealant Depth?
1/2" Multiply by 2
5/8" Multiply by 2.5
1" Multiply by 4
1-1/4" Multiply by 5
Somerville, NJ 08876 USA • Phone: 800.992.1180 • Fax: 908.526.9623
